Description

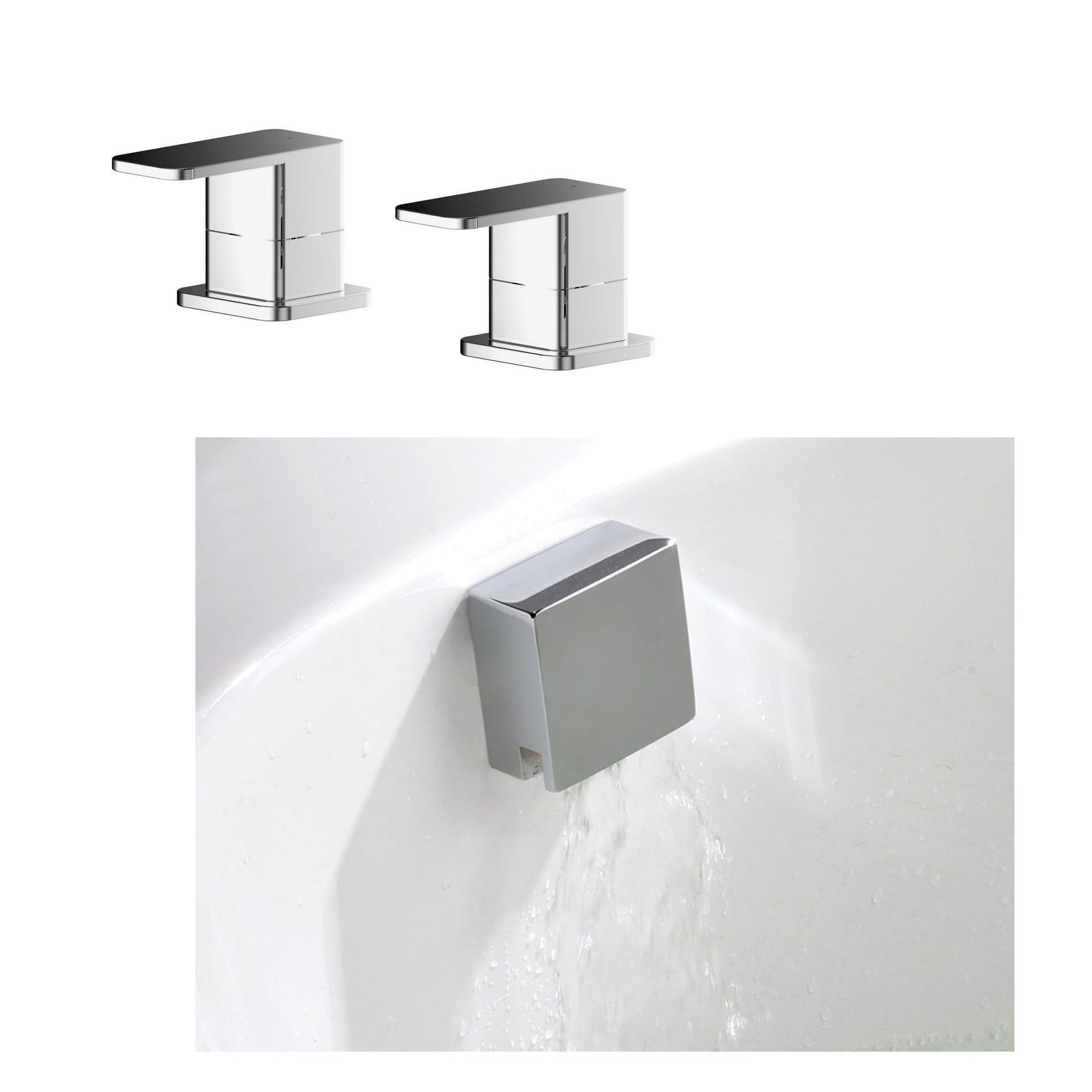

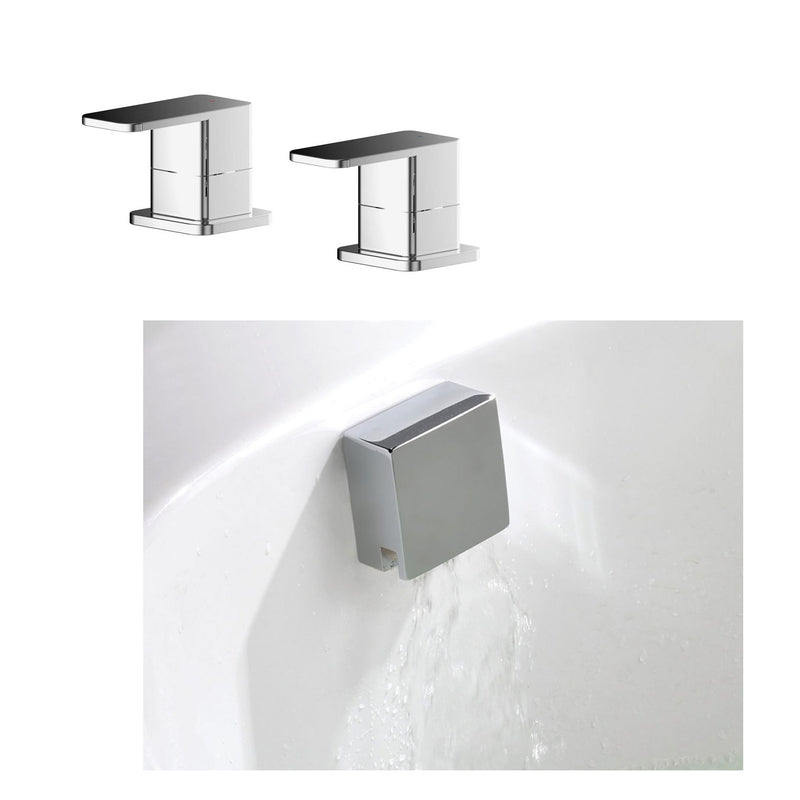

If you are looking for a modern and clutter free approach to filling a bath but also want something that is easy to install, this bath panel valves and overflow filler set is a great choice. The valves are mounted into the deck of a bath (one for hot and one for cold) and you can use them to blend water temperature and flow to the filler which allows you to fill the bath from the overflow. Both the valves and the overflow filler feature a modern square design and a polished chrome finish, making them a great choice for contemporary bathroom designs. You will need a medium or high pressure water system of 0.5 bar or more for the set to operate properly.

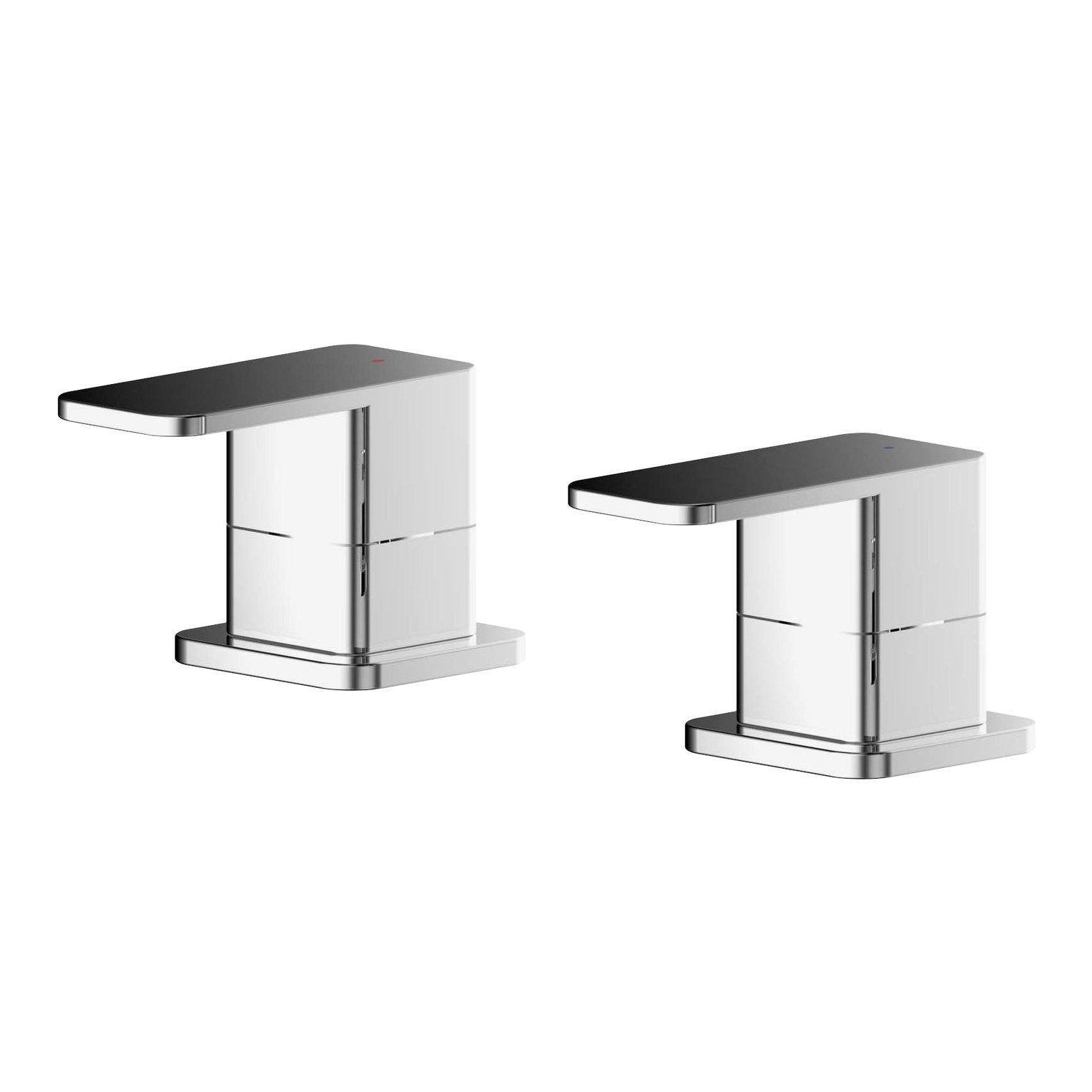

Bath Valve Features
Bath panel valves
Deck mounted
1 x hot and 1 x cold tap controls
To control water flow / temperature to a bath filler waste / spout
Polished chrome finish
Medium pressure 0.5 bar minimum
Solid brass body construction
With ceramic disc technology
3/4" pipe connections
5 year manufacturer guarantee

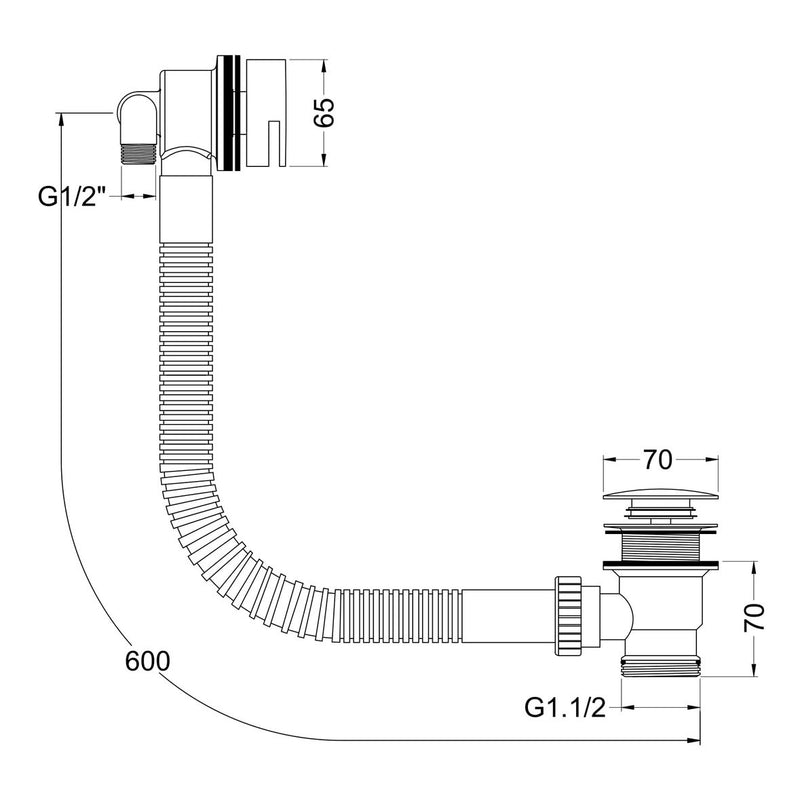

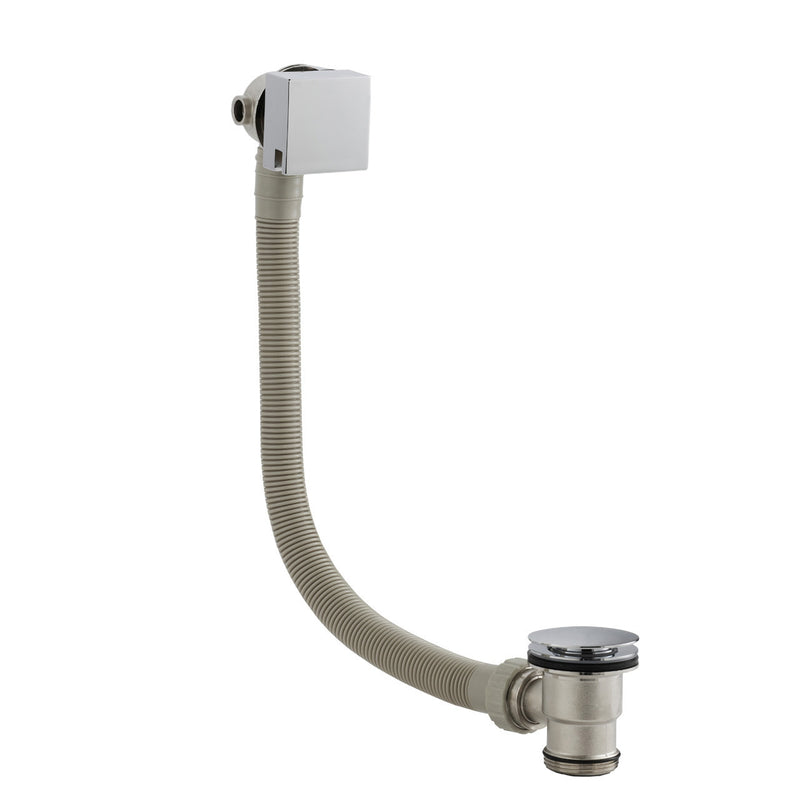

Bath Filler Waste Features
Bath filler waste
Allows you to fill the bath from the overflow hole
Square design
For use with baths without tap holes
Requires separate valve to control water flow and temperature
Polished chrome finish
Low pressure 0.1 bar minimum
Solid brass & plastic body construction
With push down "clicker" plug system
1/2" water pipe connections
1 & 1/2" waste pipe connection
Suitable for baths of up to 18m thickness
Requires a flat edge for installation
5 year manufacturer guarantee
Specification
Product Overview
| Product code | CAP518 |
|---|---|
| Brand | Bath Lab |
| Range | Bath Lab Cape |
| Style | Modern |

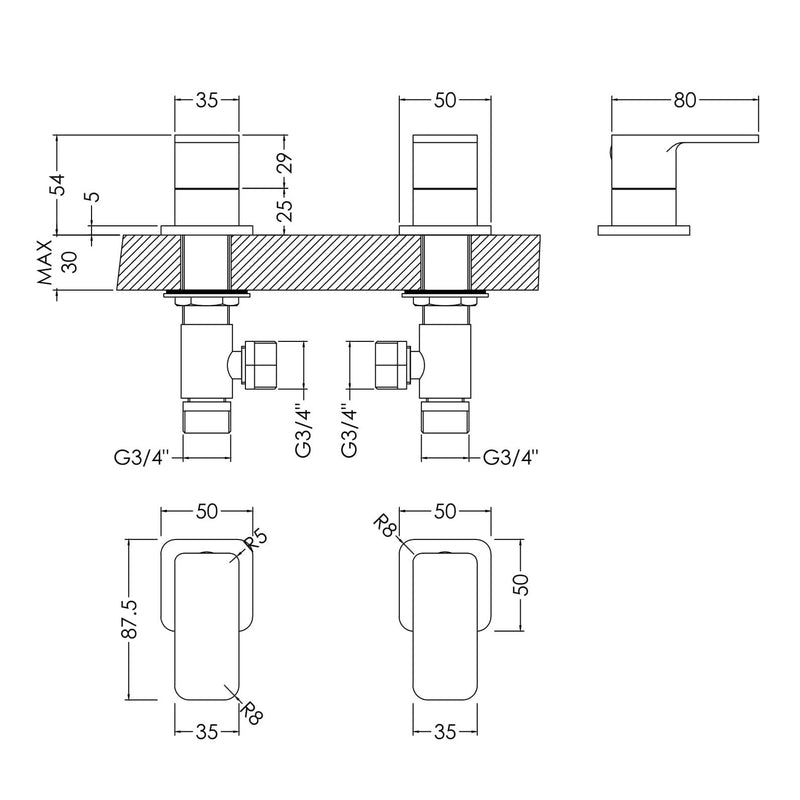

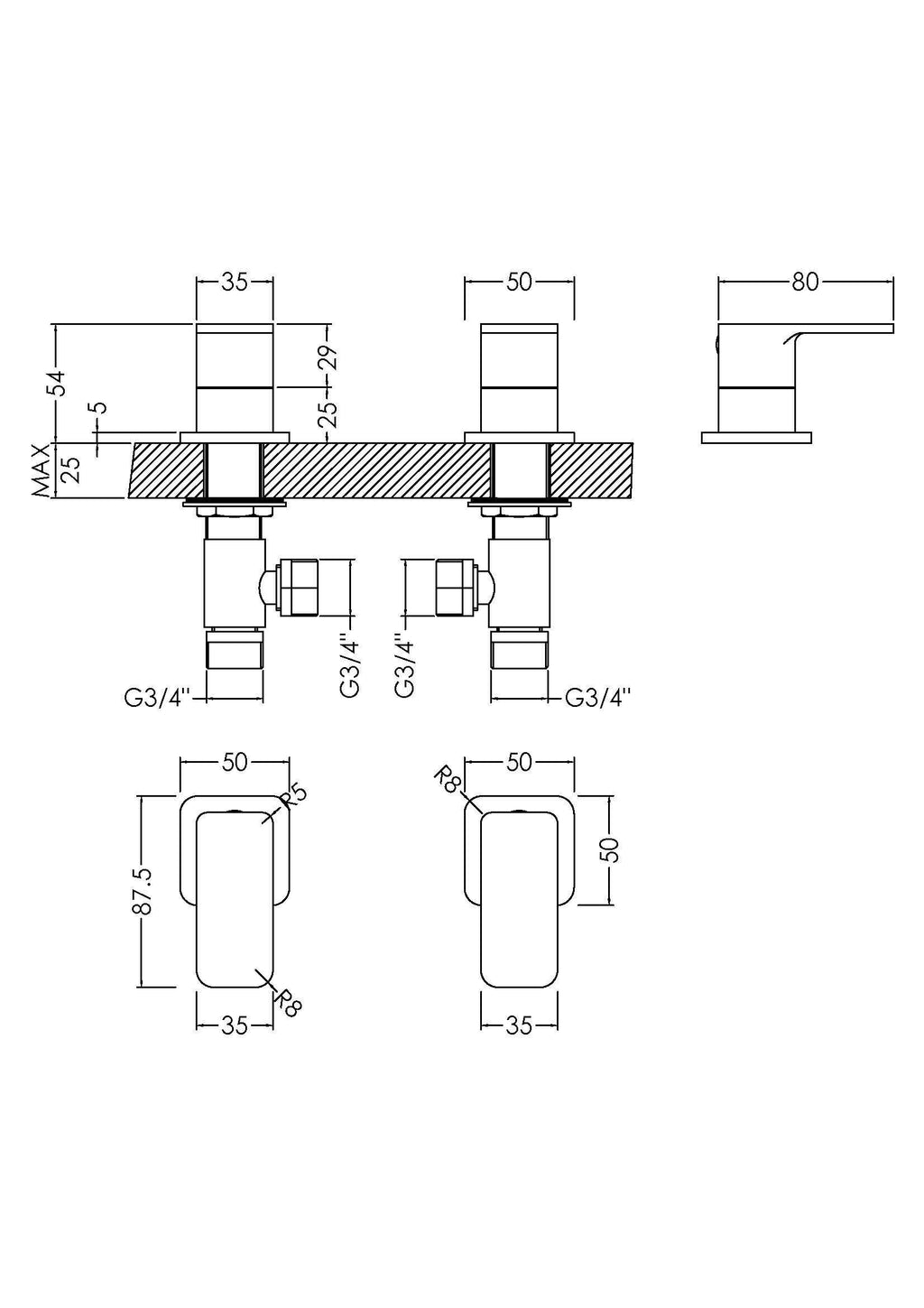

Bath Tap Specification
| Colour | Chrome |
|---|---|
| Length | mm |
| Width | 50.0 mm |
| Depth | 80.0 mm |
| Height | 55.0 mm |
| Weight | 1.52 kg |
| Entrance Width | mm |
| Door Swing In | mm |
| Door Swing Out | mm |
| Radius | mm |
| Number Of Tap Holes | |
| Inner Bowl Height | mm |
| Maximum Radiator Projection | mm |
| Volume | l |
| Displaced Capacity | l |
| Bowl Shape | |
| BTU at 30 Degrees Celsius | BTU |
| BTU at 50 Degrees Celsius | BTU |
| BTU at 60 Degrees Celsius | BTU |
| Heating Element Wattage | W |
| Number of Bowls | |
| Seat Type | |
| Tap Holes Required | 2 |
| Adjustment | |
| Guarantee | 5 Years |
| Handle Type | Lever/Square |
| Waste Included | No |
| Mounting Type | Deck |
| Minimum Operating Pressure (Bar) | 0.5 |
| Valve/Cartridge Type | 1/4 Turn Ceramic Disc |
| Flow Rate at 0.1 Bar (L/min) | 9.6 |
| Flow Rate at 0.5 Bar (L/min) | 19.2 |
| Flow Rate at 1.0 Bar (L/min) | 26.6 |
| Flow Rate at 2.0 Bar (L/min) | 37.9 |
| Flow Rate at 3.0 Bar (L/min) | 46.5 |
| WRAS Approved | No |
| TMV2 Approved | No |
| TMV3 Approved | No |
Free delivery on orders over £299
This product is classed as a small delivery item and the following delivery options are available:
| Delivery Service | Timescale | Cost |
| Delivery ASAP | Usually delivered in 1-2 working days | £8.95 (free if order over £299) |
| Delivery When You Are Ready | We will email you to arrange a delivery date with you | £8.95 (free if order over £299) |
If your order consists of large and small products, you will only pay the large item delivery fee
When will delivery be?
Deliveries are Monday - Friday between 8am - 6pm. and you will kept updated on delivery by email, phone or text so you know when delivery will be.
Can I delay delivery?
Yes, please place you order and email us the order number and details of when you would like delivery to be.
Can I order something that is out of stock?
Yes, you can back-order an item to be delivered once available. If you order other in-stock items we will delay delivery until all items are available but can arrange a split delivery if required (which may incur charges).
Can I change my order once placed?
Yes, provided your order has not been dispatched, it can be changed.
Where do you deliver to?
We deliver to the majority of mainland UK. We do not deliver to Ireland, Northern Ireland, the Scottish Isles & Highlands or the Channel Isles at present.
See our delivery page for more information
- We offer a no-quibble 30 day returns policy (from delivery) for refunds and exchanges.
- We also offer a convenient collection service for unwanted products. This is chargeable but is useful for large, fragile items.
- To arrange a return, please contact us first to start the process.
- We cannot accept returns for products that have been used, installed or are not as new.
- In the unlikely event that an item arrives damaged, we will arrange a replacement or refund.
- Damaged items must be reported to us within 48 hours of delivery.
See our returns page for more information
Cape Brassware
The Cape collection of taps and showers is synonymous with its ultra modern, angular design. Square handles and bodies are combined with popular finishes including chrome, brushed brass and matt black - making Cape a great choice for contemporary bathrooms.
